Elizabeth Merkle’s portfolio project stands as an inspiring example of how dedication and hands-on training at VDCI can transform a student into an industry-ready professional. Explore her process, challenges, and triumphs in mastering CAD/BIM tools like AutoCAD and Revit.
Elizabeth Merkle is a recent graduate of VDCI’s CAD/BIM Certificate Program, where she has completed a series of hands-on modules covering both 2D drafting in AutoCAD and 3D modeling in Revit. Throughout her coursework, Elizabeth has built a solid foundation in industry‑standard drafting conventions, sheet setup, and BIM workflows. Her dedication to mastering these core skills culminates in a comprehensive portfolio project that demonstrates her preparedness for professional roles in the architecture, engineering, and construction industries.
Portfolio Project Spotlight
For her final project, Elizabeth Merkle designed a single-family residence in meticulous detail. Working in both AutoCAD and Revit, she delivers an end-to-end BIM workflow that mirrors real-world practice. Her deliverables include:
- Title Sheet with project metadata and sheet index
- Floor Plans for first and second levels, drawn at 1:100 scale
- Roof Plan illustrating slope and overhangs
- Door & Window Schedules cataloging families, sizes, and counts

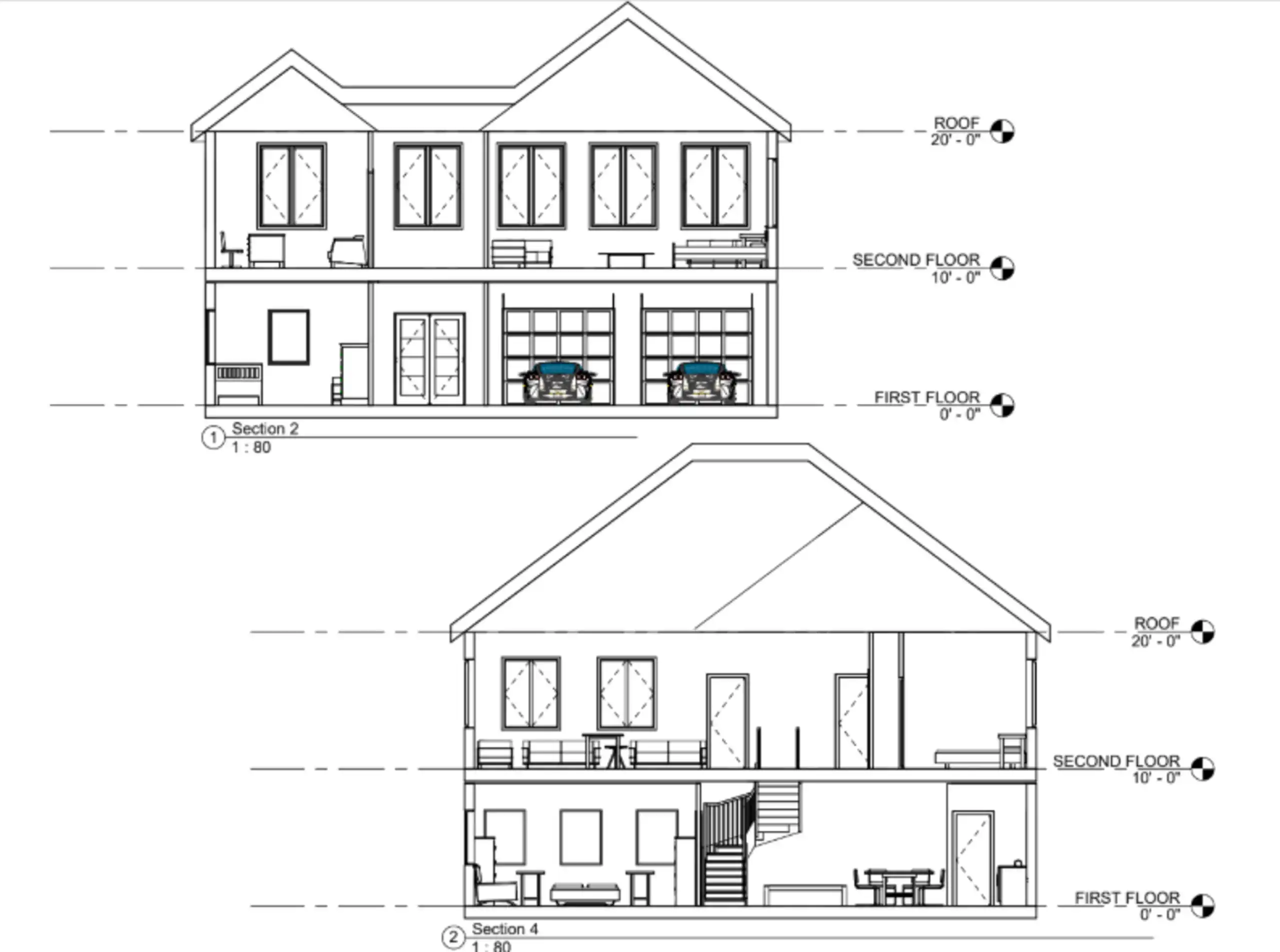

- Sections cutting through the structure to reveal floor-to-ceiling heights
- Elevations on all four façades, complete with material hatching
- Rendered Views that showcase spatial relationships and finishes
Each component reflects key competencies taught throughout the program: precise layering and dimensioning (AutoCAD Units 1–3), sheet setup and plotting (Units 4–6), and Revit-driven schedules and visualizations (later Revit modules).
